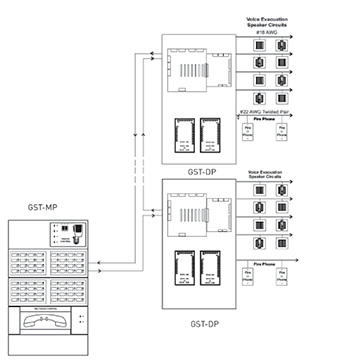

• GST-DP is the Distributed Panels in the system. All GST-DP are connected to a master panel via RS485 line and provide the supervised 25V or 70V speaker circuit and fire phone • circuits on the fields.
• Each GST-DP is powered individually and with backup battery.

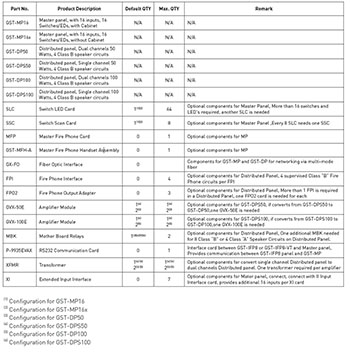

• GST provides 4 basic models:
GST-DPS50, single channel, 50W
GST-DP50, dual channel, 50W
GST-DPS100, single channel, 100W
GST-DP100, dual channel, 100W
• All these models have 4 class B circuits, and do not have the fire phone option.
• All these models can be expanded for 4 to 16 fire phone circuits. 4 class A or 8 class B speaker circuit.
• Communications: RS-485 Standard, 1M Baud rate
• Primary Supply: 220VAC
• Backup Battery: 7AH/24VDC(GST-MP), 17AH/24VDC(GST-DP)
• Electrical Ratings: All Circuits @ 24VDC
• End of Line Resister: 10kΩ
• Maximum Cable Length: 4,000 feet, #16 AWG, between panels, 50,000 feet in the overall system.
• Recommended Cable: 16 or 18 AWG, (Low Capacitance) UTP Unshielded-Twisted pair.
